COMMERCIAL SCAFFOLD
5M ALUMINIUM SCAFFOLD SYSTEM
The Gorilla Trade Scaffold is a trade tough mobile scaffold system, providing a 5.0 metre working height making it perfect for the trade use. Independently tested to AS/NZS157:2010, the Gorilla Trade Scaffold is perfect for tradesman and serious DIY users.
THE ULTIMATE SCAFFOLD TOWER
Gorilla's Mobile Scaffold system offers 4 configurations so that you only need to purchase what is required for the job.
All packs and accessories are sold separately.
STARTER PACK
PACK CONTAINS:
2x 2110 x 1250mm – Five Rung Frames
2x 1000 x 1250mm – Guard Rails
1x 2500 x 540mm – Platform
1x 2500 x 540mm – Platform with Hatch
1x 2795mm – Bottom Braces
4x 2625mm – Diagonal Braces
6x 2500mm – Horizontal Braces
4x 150mm (6”) – Adjustable Wheels
COMPULSORY COMPONENTS:
Toe Board Pack
Stabiliser Pack

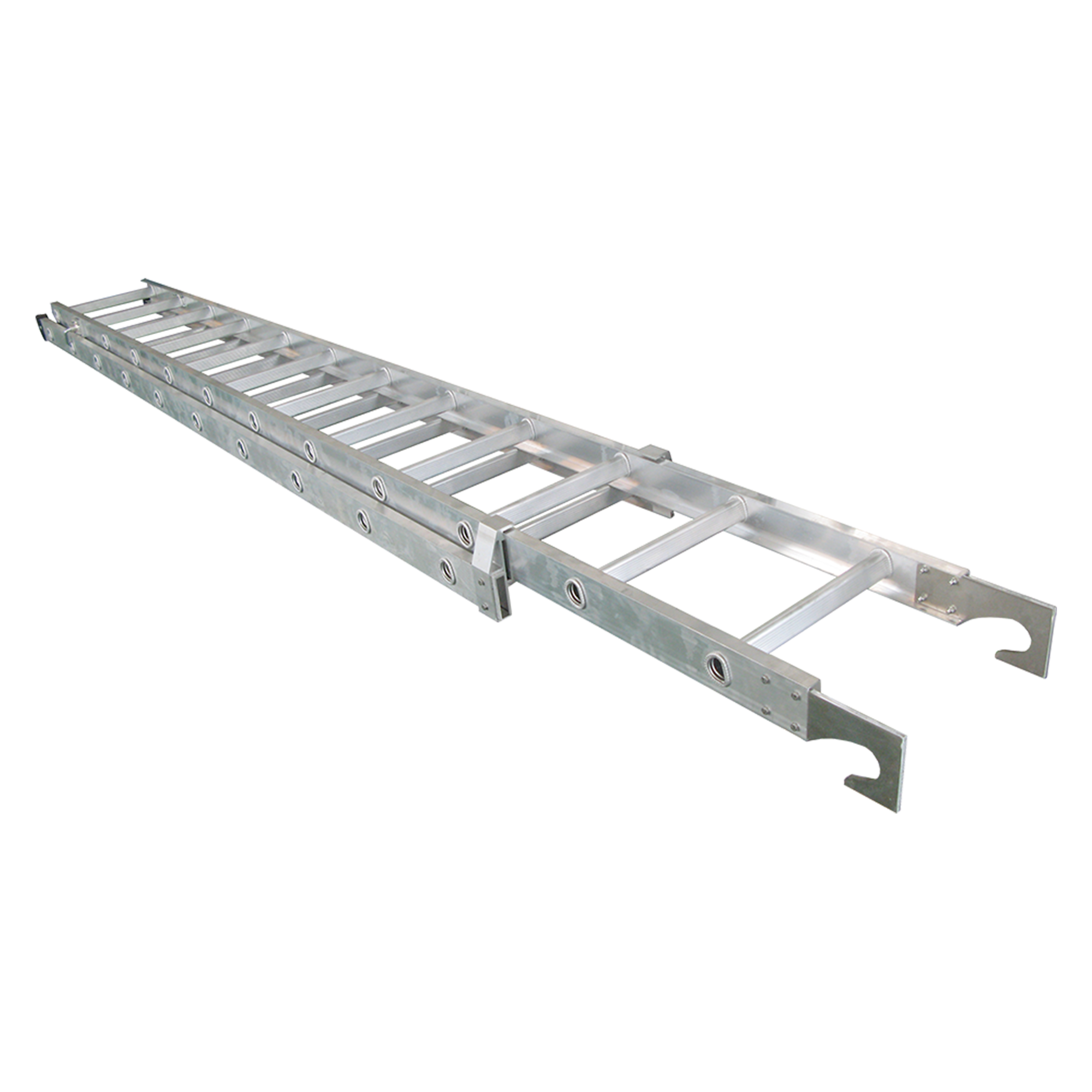

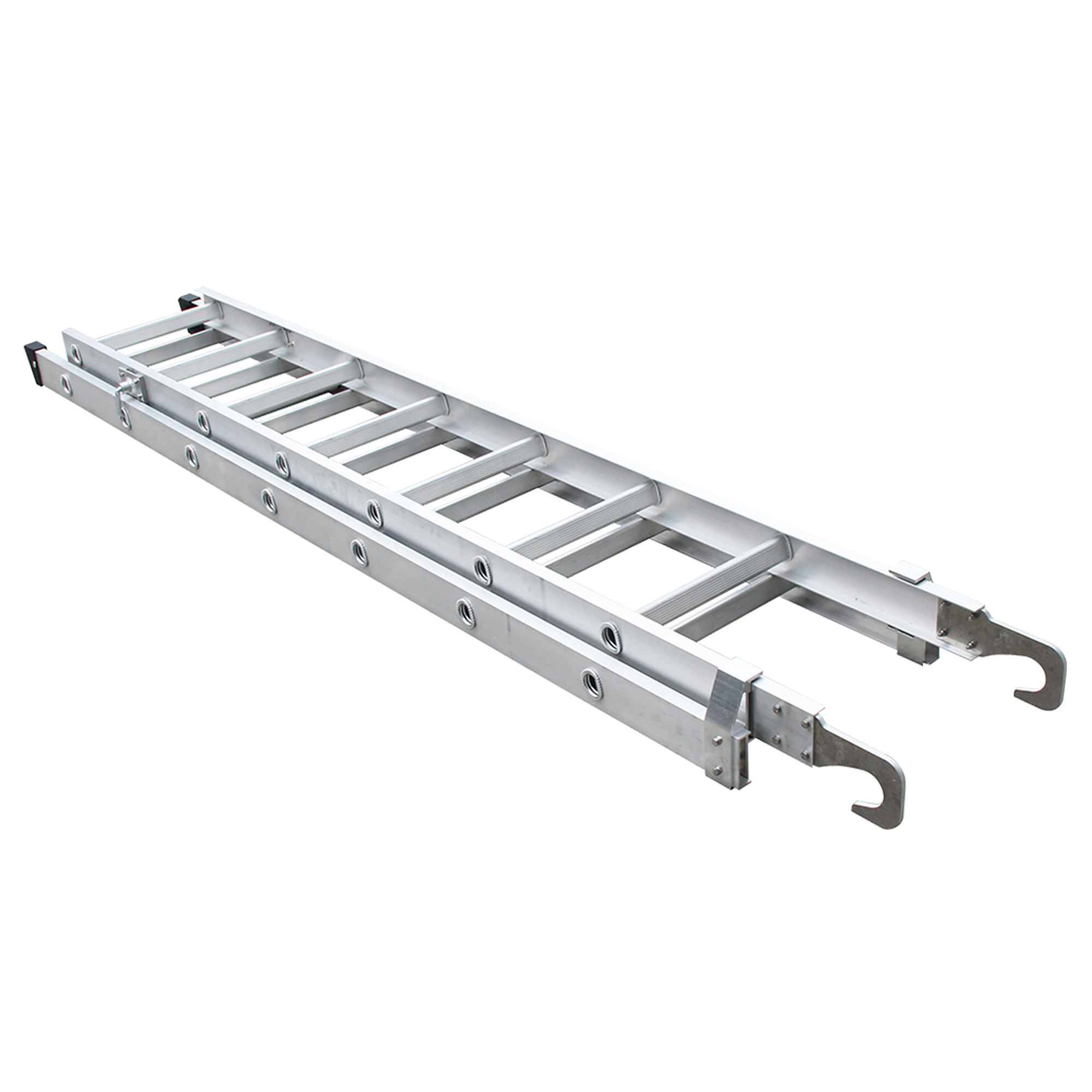

4m Scaffold Ladder
Ladder Support
ASSEMBLED DIMENSIONS:
3230H x 2500W x 1250D mm
RISER EXTENSION PACK
PACK CONTAINS:
2x 1310 x 1250mm – Three Rung Frames
2x 2625mm – Diagonal Braces
COMPULSORY COMPONENTS:
Toe Board Pack
Stabiliser Pack
4m Scaffold Ladder
Ladder Support
ASSEMBLED DIMENSIONS:
4430H x 2500W x 1250D mm
Riser Extension Pack must be used in conjunction with Starter Pack
TOWER EXTENSION PACK
PACK CONTAINS:
2x 1710 x 1250mm – Four Rung Frames
6x 2625mm – Diagonal Braces
COMPULSORY COMPONENTS:
Toe Board Pack
Stabiliser Pack
6m Scaffold Ladder
Ladder Support
ASSEMBLED DIMENSIONS:
4800H x 2500W x 1250D mm
Tower Extension Pack must be used in conjunction with Commercial Starter Pack
THE ULTIMATE SCAFFOLD TOWER
MADE UP OF:
Starter Pack
Riser Extension
Tower Extension
COMPULSORY COMPONENTS:
Toe Board Pack
Stabiliser Pack
6m Scaffold Ladder
Ladder Support
ASSEMBLED DIMENSIONS:
6030H x 2500W x 1250D mm
Safe Platform Height up to 5030mm
NB: All Commercial Scaffold accessories and spare parts are sold separately*
IMPORTANT REMINDER
When constructed above 5 metres in total height, scaffold must be assembled, maintained, repaired and dismantled by a holder of current certification of compliance.
To meet SiteSafe NZ Guidelines, Toe Boards, Stabilisers, Scaffold Ladders and Ladder Support must be used where the platform height is at 1.9 metres or above.
Refer to the current SiteSafe NZ Guidelines for more information*
COMMERCIAL SCAFFOLD PACKS
Commercial Scaffold
Starter Pack
Commercial Scaffold
Riser Extension Pack
Commercial Scaffold
Tower Extension Pack
SCAFFOLD ACCESORIES

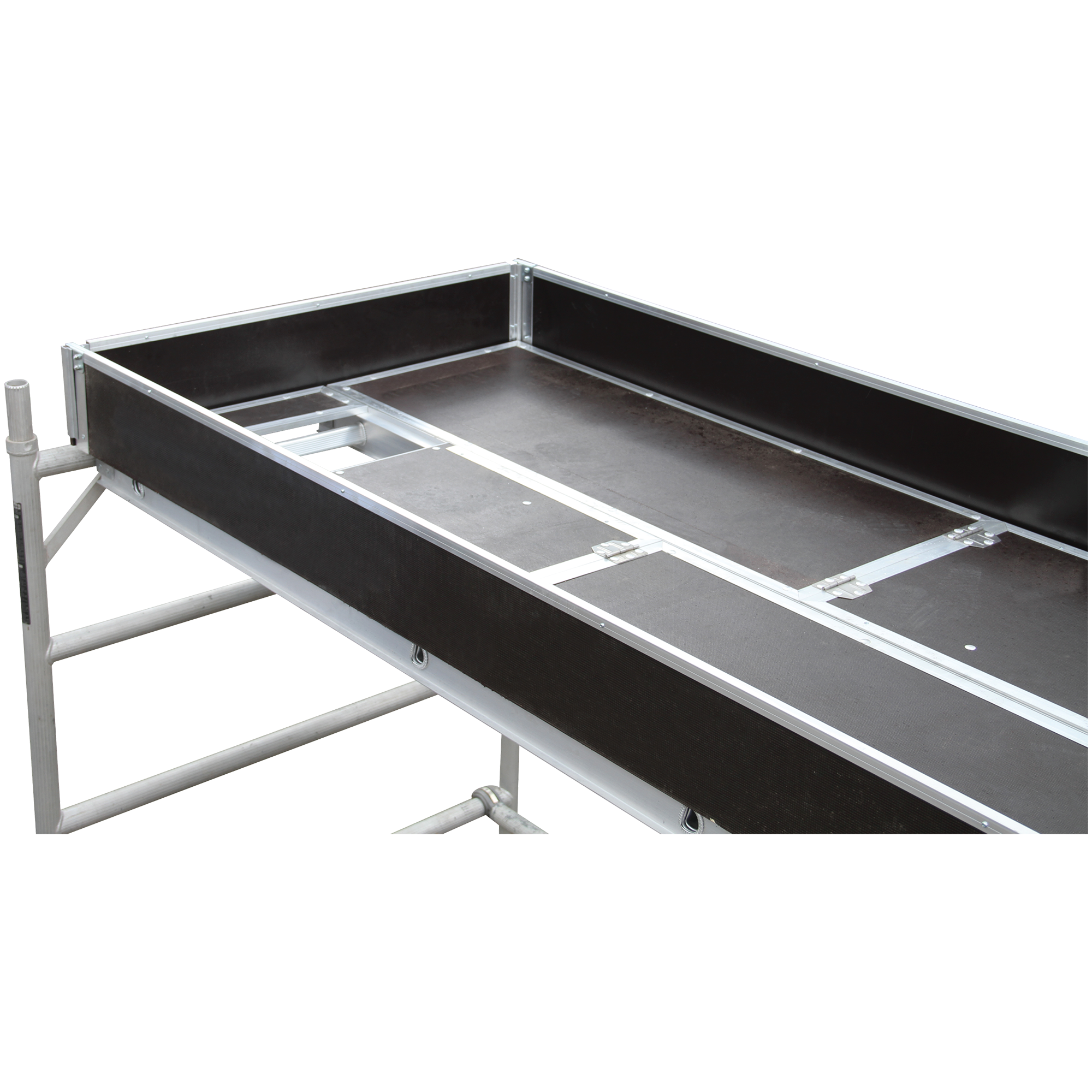

Toe Board Pack
Adjustable Wheel Pack
Adjustable Base Packs

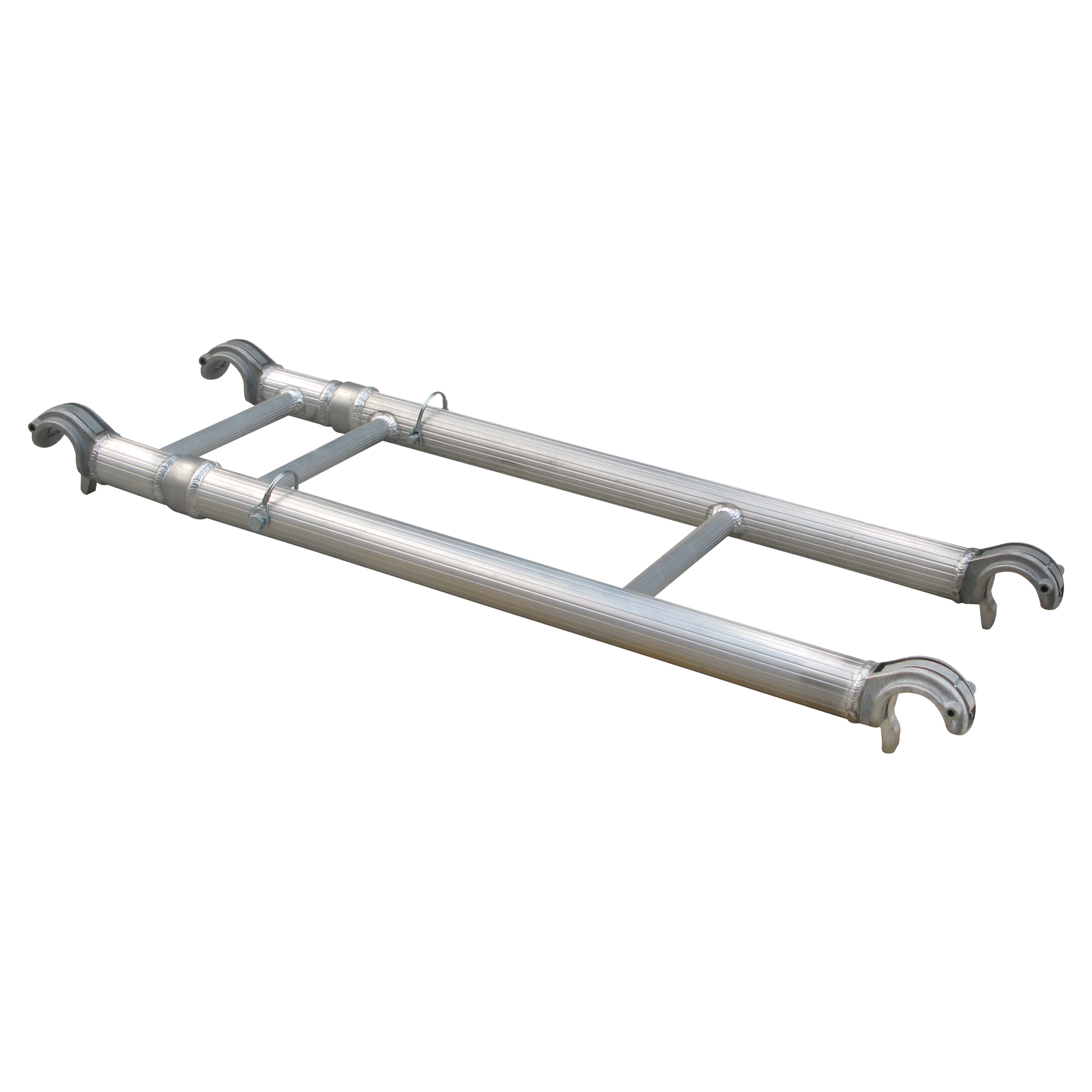

Stabiliser Pack (Pack of 2)
Adjustable Scaffold Wheel
Commercial Platform without Hatch
If you require replacement parts, please send an enquiry by filling in the contact page form or email us at sales@gorillaladders.co.nz.
